Connect an AWR300 Scanner

Before you connect the Allflex AWR300 RFID scanner, download the latest firmware from the Allflex website.

NOTE: If you purchased the scanner from a third party, verify with the seller that the scanner has all of the necessary configuration files installed before you continue.

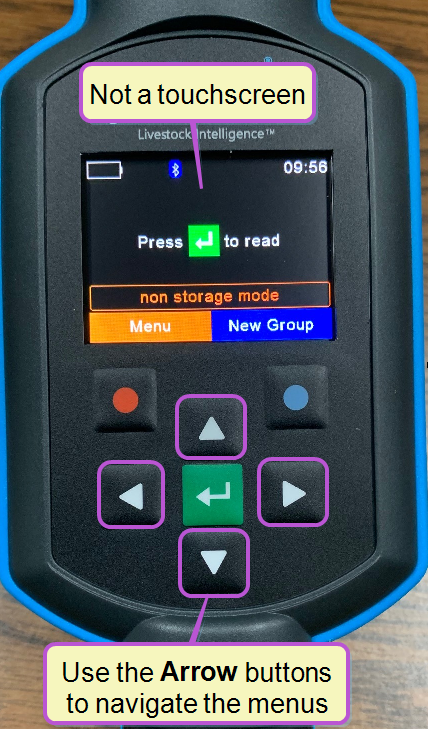

  • The display is not a touchscreen; options are selected using the Arrow buttons:

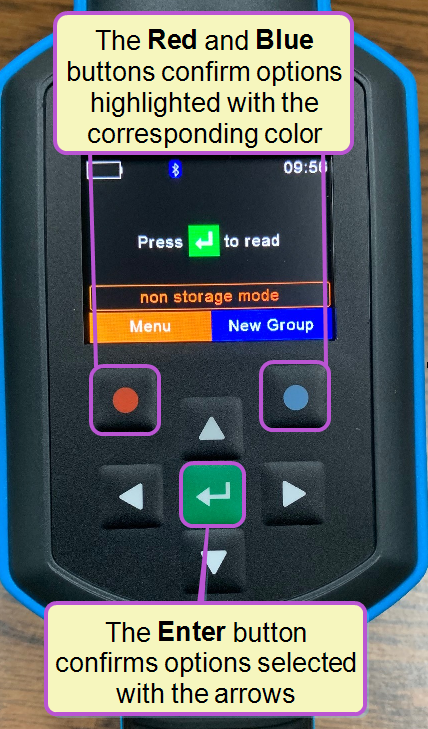

  • To confirm a selection, you must press the Enter button A green button with a white arrow pointing down, then left.. To confirm options highlighted in orange or blue, press the Red or Blue button instead:

If you purchased your AWR300 scanner from VAS, follow the steps below to connect it to your iOS or Android device:

  1. Power on the scanner.

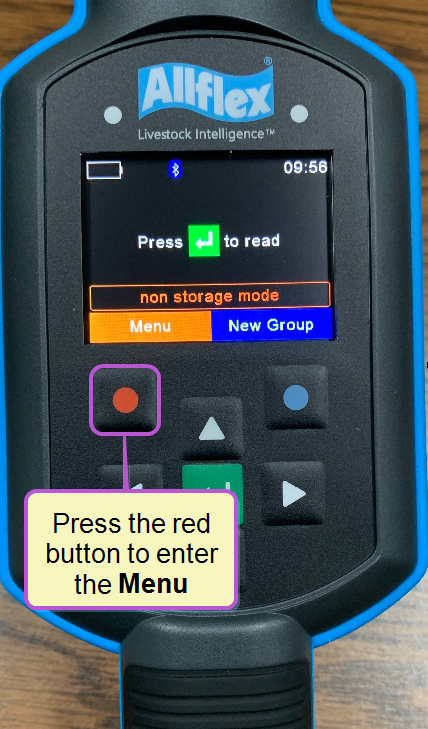

  2. Press the red button in the bottom half of the display to open the Menu:

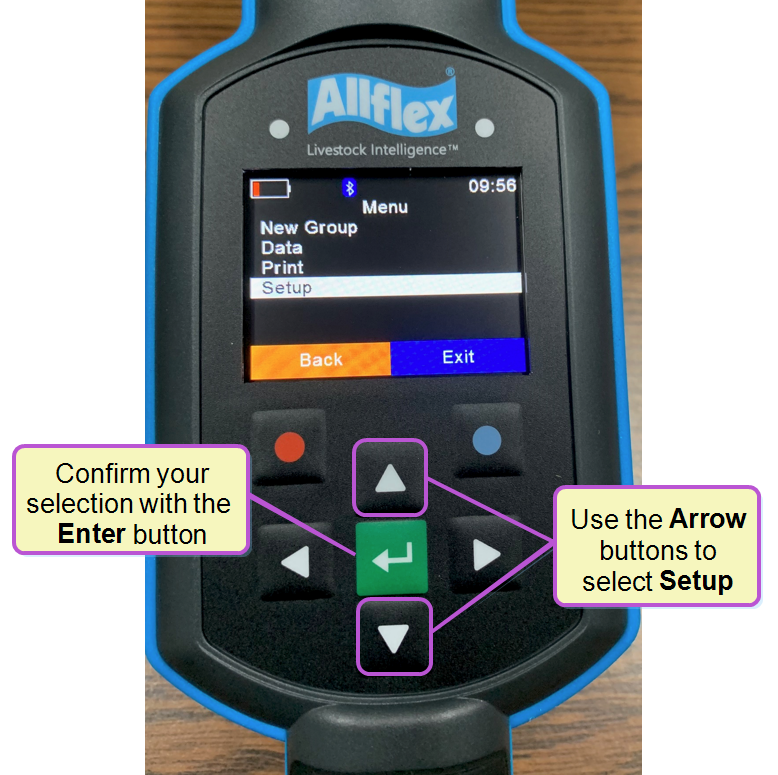

  3. Using the arrow buttons, select Setup:

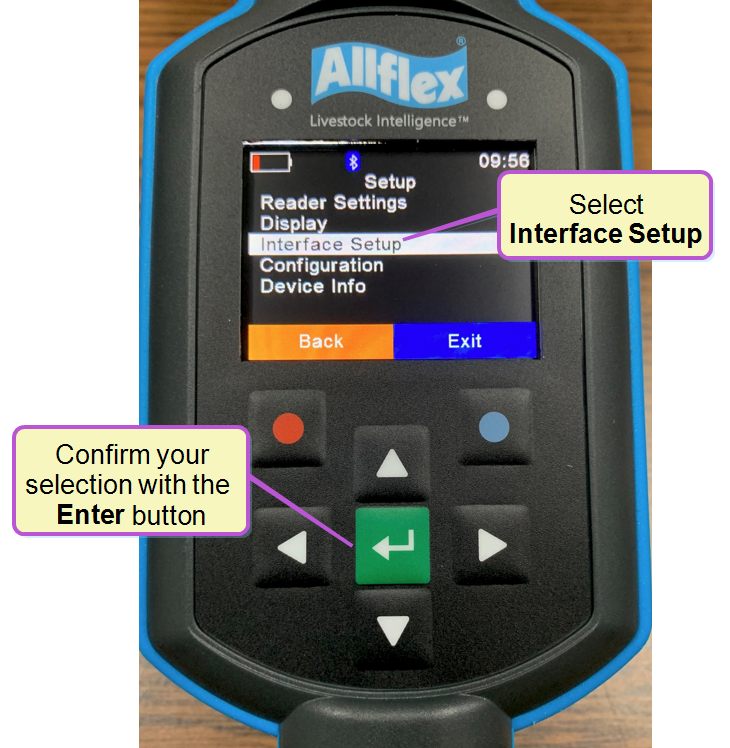

  4. Select Interface Setup:

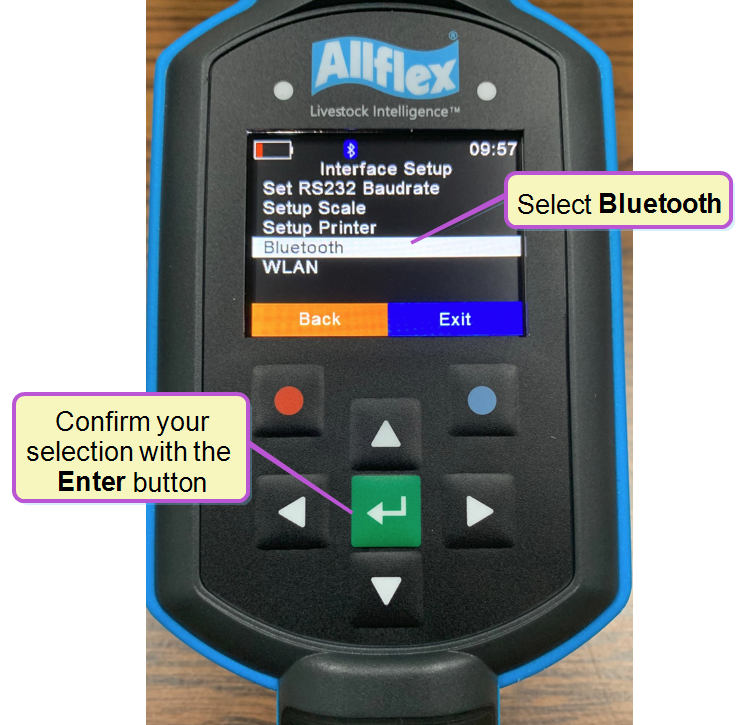

  5. Select Bluetooth:

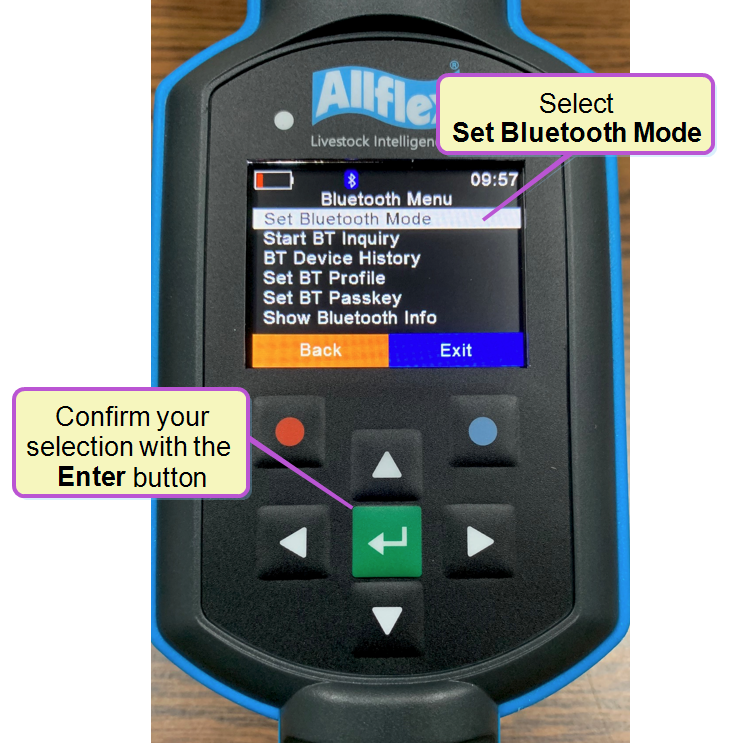

  6. Select Set Bluetooth Mode:

  7. Set the Bluetooth mode for your device type. Expand the sections below for details:

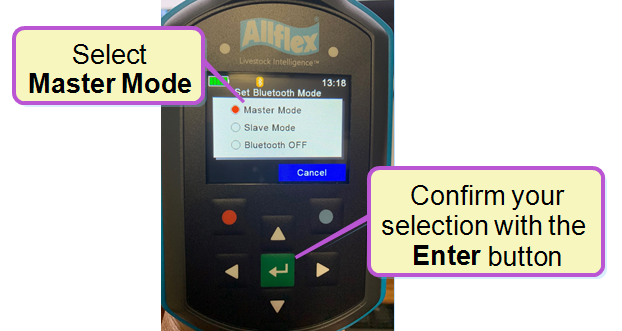

    1. Select Master Mode:

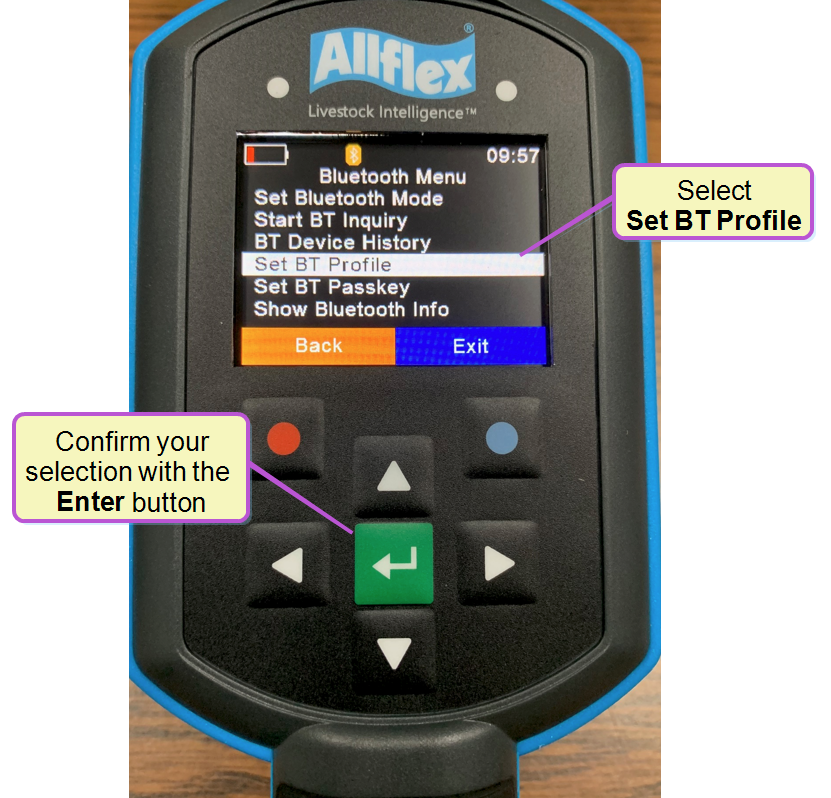

    2. Select Set BT Profile:

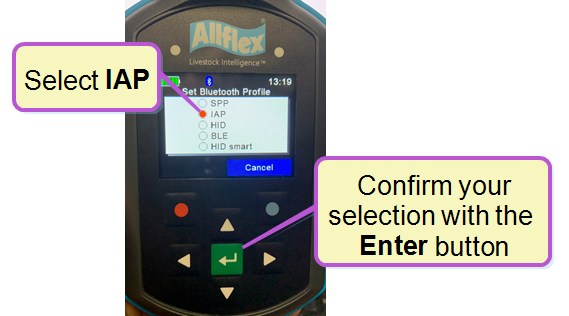

    3. Select IAP:

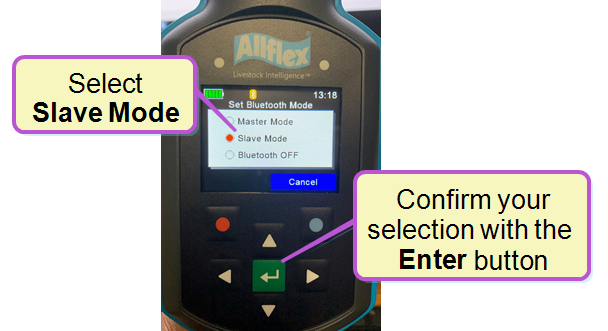

    1. Select Slave Mode:

    2. Select Set BT Profile:

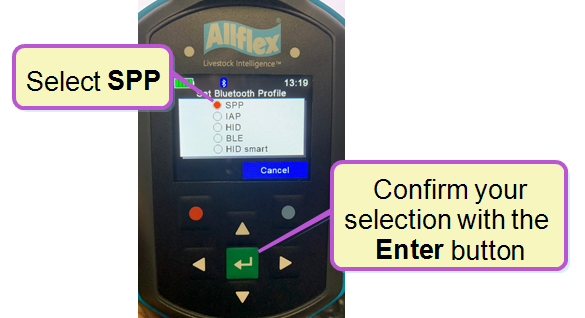

    3. Select SPP:

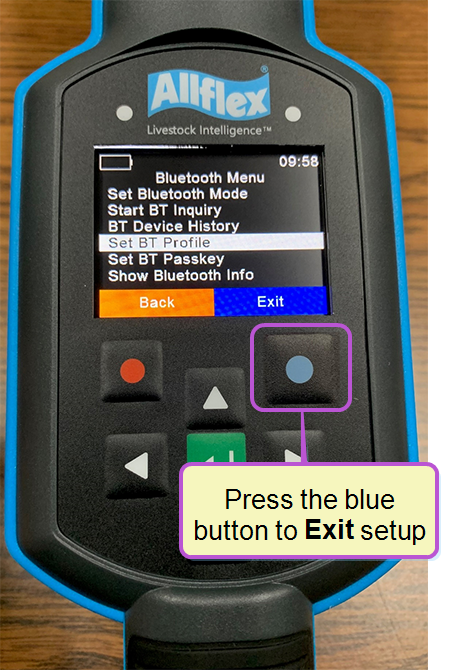

  8. Press the blue button to Exit setup:

  9. Press the Enter button A green button with a white arrow pointing down, then left. to begin scanning.
