Allflex CowCard Widgets

NOTE: For the Partners tab to display heat and health data, your dairy must first activate the integration. See Activate Integration to learn more.
IMPORTANT: The page will not load immediately. Please wait a few moments before you refresh the page, so VAS can establish a connection with Allflex. If the page does not load after a few minutes, contact VAS Support.

The PULSE Platform displays live Allflex sensor data in individual animal CowCards on the Partners tab, providing an up-to-date view of animal activity details to help guide reproduction-related protocols.

View the example below for help when viewing the Weighted Activity and Rumination Change, Rumination, and Activity widgets:

1

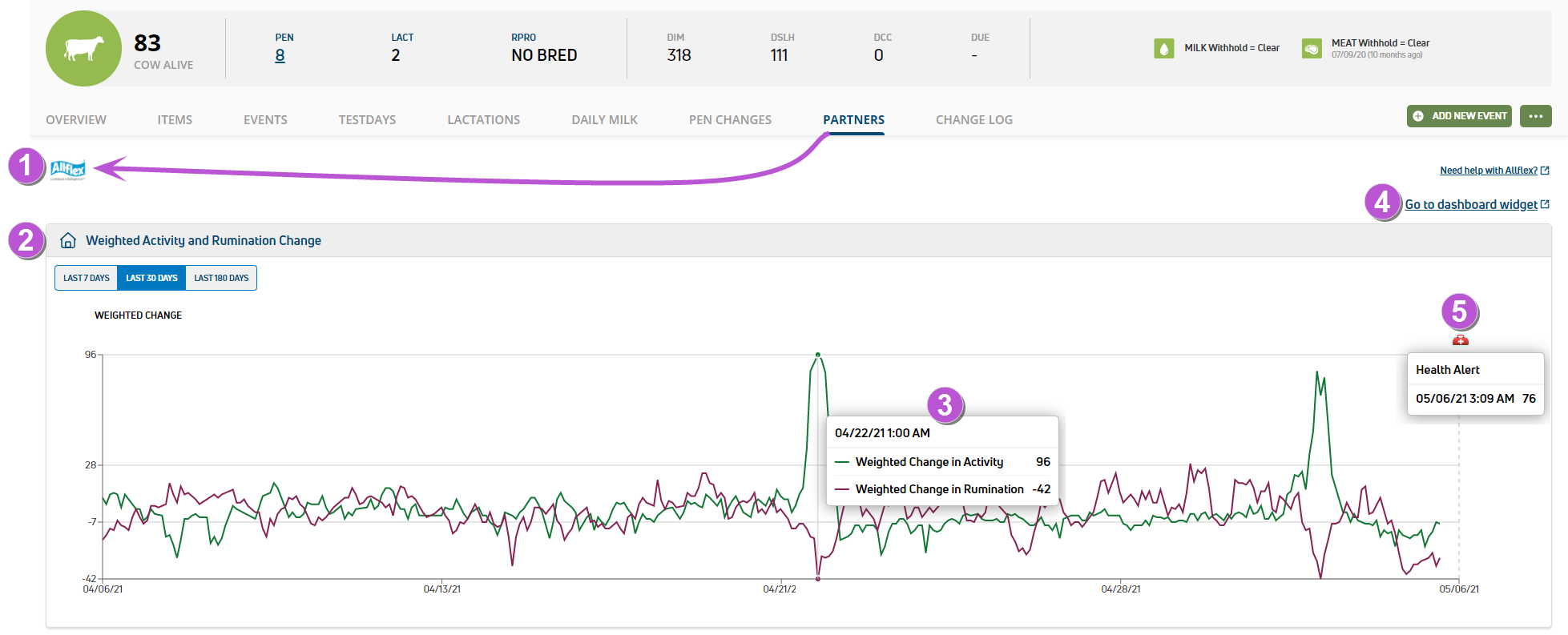

Partners Tab: To view the widget, select the Partner Name from the Partners tab on the animal's CowCard.

2

Weighted Activity and Rumination Change: This graph displays the animal's weighted change in activity (marked in green ) and rumination (marked in purple ), calculated based on its daily total minutes of activity and rumination.

The data shown in this graph is recorded by the neck sensor and sent to the PULSE Platform.
3

Change Details: Hover over the graph data to view the numeric change in activity and rumination for any recorded date and time.
4

Go to Dashboard Button: Click Go to dashboard widget to return to the Allflex Partners tab in your Dairy Dashboard.
5

Alerts: Hover over the Heat Alert or Health Alert icons to see when the last alert was recorded and the animal's Heat or Health index rating.

A Heat Alert is triggered if the animal exhibits behavior that indicates it is in heat, like eating less and exhibiting more activity at the same time.

A Health Alert is triggered an animal displays abnormal health-related activity, according to Allflex's index:

  • > 80: This animal is in good health and does not require monitoring or medical attention.
  • 75 - 80: This animal is not in bad health but requires monitoring.
  • < 75: This animal is in bad health and requires medical attention.

A few examples of abnormal activity may include:

  • Eating for a shorter period of time but not exhibiting increased activity to indicate that the animal is in heat.
  • Exhibiting less activity.
6

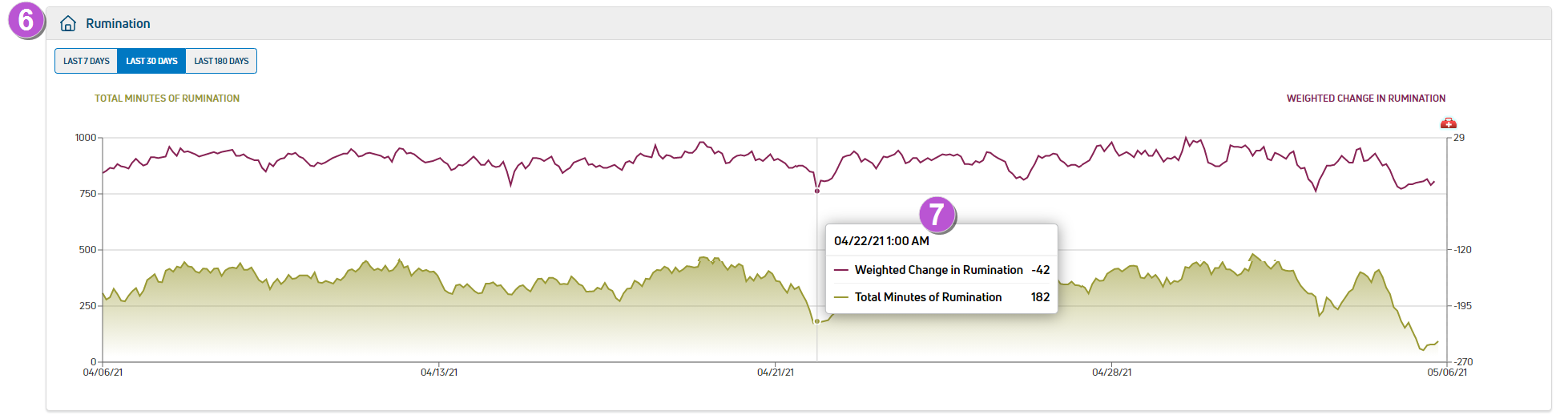

Rumination: The Rumination graph shows the total minutes of rumination (marked in olive green ) and the change in rumination (marked in purple ), sorted by date and time.

7

Rumination Details: Hover over the graph data to view the total minutes of rumination and the change in rumination for any recorded date and time.
8

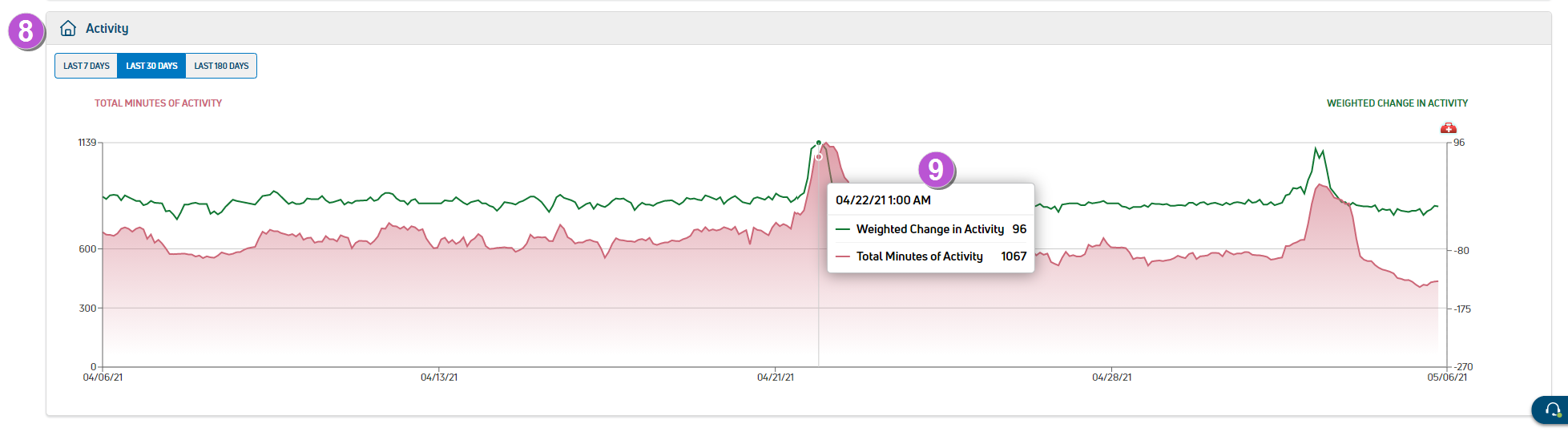

Activity: The Activity graph shows the total minutes of activity (marked in red ) and the change in activity (marked in green ), sorted by date and time.

9

Activity Details: Hover over the graph data to view the total minutes of activity and the change in activity for any recorded date and time.
< Return to Allflex Overview
